| 项目 | HTW3.9-7.8 | HTW3.9-7.8S (侧发光) | HTW7.8-7.8 | HTW7.8-7.8S (侧发光) | HTW10.4-10.4 | HTW10.4-10.4H | HTW15.6-15.6 | HTW20.8-20.8 |
| 点间距 | 3.9mm (H) / 7.8mm (V) | 3.9mm (H) / 7.8mm (V) | 7.8mm (H) / 7.8mm (V) | 7.8mm (H) / 7.8mm (V) | 10.4mm (H) / 10.4mm (V) | 10.4mm (H) / 10.4mm (V) | 15.6mm (H) /15.6mm (V) | 20.83mm (H) /20.83mm (V) |
| 像素密度 | 32,768 pixels/㎡ | 32,768 pixels/㎡ | 16,384 pixels/㎡ | 16,384 pixels/㎡ | 9,216 pixels/㎡ | 9,216 pixels/㎡ | 4,096 pixels/㎡ | 2,304 pixels/㎡ |

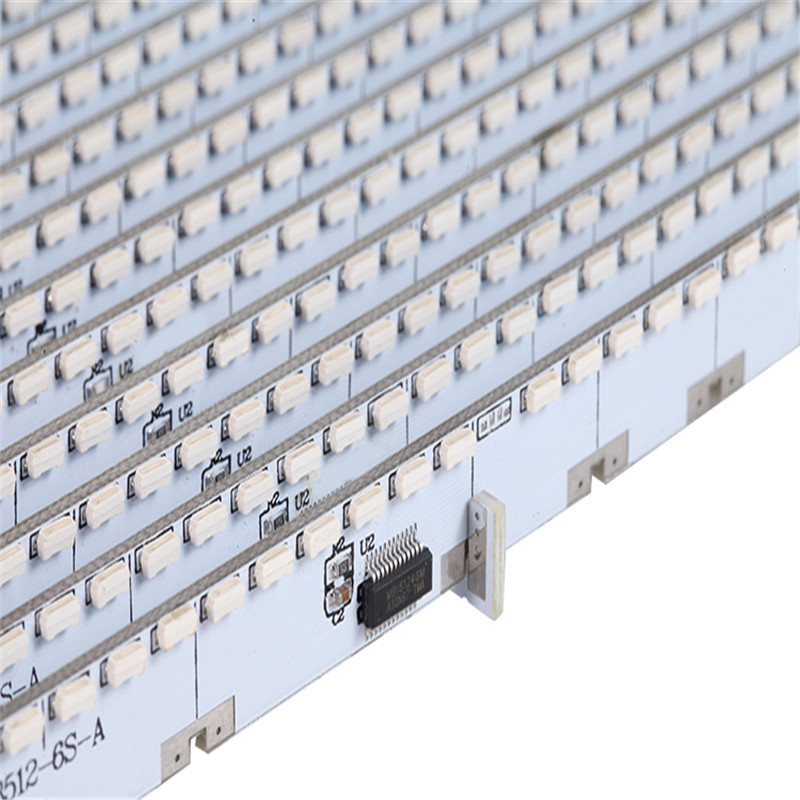

| LED | SMD1921 | SMD3012 | SMD1921 | SMD3012 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| 模组尺寸 | 500x125mm | 1000*125mm | 500x125mm | 1000x125mm | 500x125mm | 500x125mm | 500x125mm | 500x125mm |
| 模组分辨率 | 128×16 pixels | 256×16 pixels | 64×16 pixels | 128×16 pixels | 48×12 pixels | 48×12 pixels | 32×8 pixels | 24×6 pixels |
| 模组数量 | W2 x H8 | W1 x H8 | W2 x H8 | W1 x H8 | W2 x H8 | W2 x H8 | W2 x H8 | W2 x H8 |

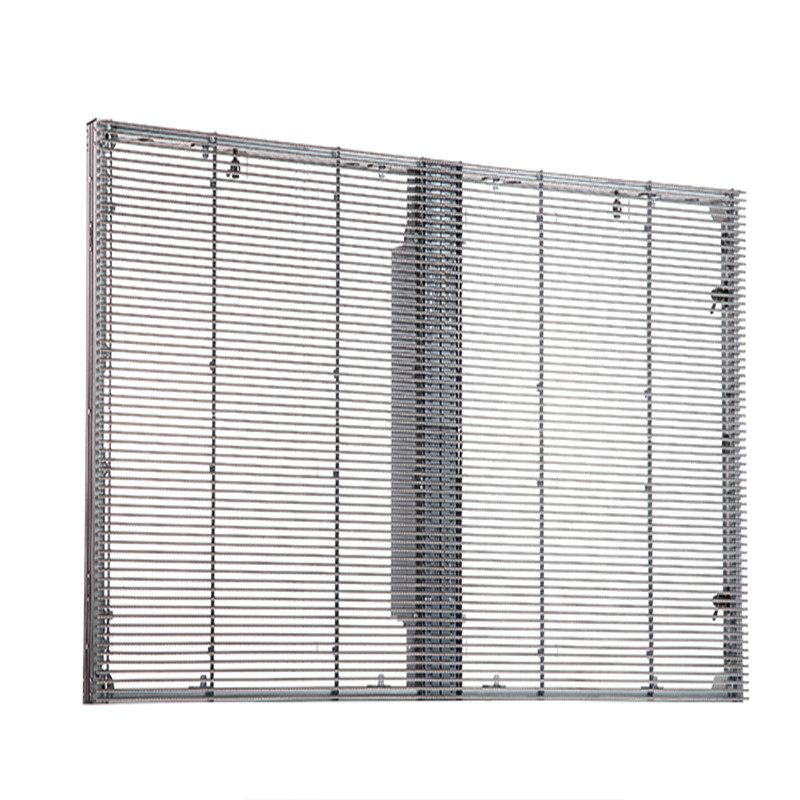

| 箱体尺寸 | 1000x1000x80mm | 1000x1000x80mm | 1000x1000x80mm | 1000x1000x80mm | 1000x1000x80mm | 1000x1000x80mm | 1000x1000x80mm | 1000x1000x80mm |
| 箱体分辨率 | 256×128 pixels | 256×128 pixels | 128×128 pixels | 128×128 pixels | 96×96 pixels | 96×96 pixels | 64×64 pixels | 48×48 pixels |
| 重量 | 14kg | 14kg | 14kg | 14kg | 13kg | 13kg | 12kg | 12kg |
| 可选尺寸 | 1000x500x80mm | 1000x500x80mm | 1000x500x80mm | 1000x500x80mm | 1000x500x80mm | 1000x500x80mm | 1000x500x80mm | 1000x500x80mm |
| 箱体材质 | 铝型材 | 铝型材 | 铝型材 | 铝型材 | 铝型材 | 铝型材 | 铝型材 | 铝型材 |
| 亮度 | 4,500-5,000 nits | 5,500-6,500 nits | 4,500-5,000 nits | 5,500-6,500 nits | 4,500-5,500 nits | 8,500-9,500 nits | 4,500 & 7,500 nits | 3500 &5,500 nits |
| 通透率 | 65% | 75% | 65% | 75% | 75% | 65% | 75% | 80% |
| 功耗 (Max/Ave ) | 800/270 W/sqm | 800/270 W/sqm | 800/270 W/sqm | 800/270 W/sqm | 800/270 W/sqm | 800/270 W/sqm | 800/270 W/sqm | 800/270 W/sqm |
| 视角 | 140°/140° (H/V) | 140°/120° (H/V) | 140°/140° (H/V) | 140°/120° (H/V) | 140°/140° (H/V) | 140°/140° (H/V) | 140°/140° (H/V) | 140°/140° (H/V) |
| 输入电压 | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% | 100-240V ± 10% |
