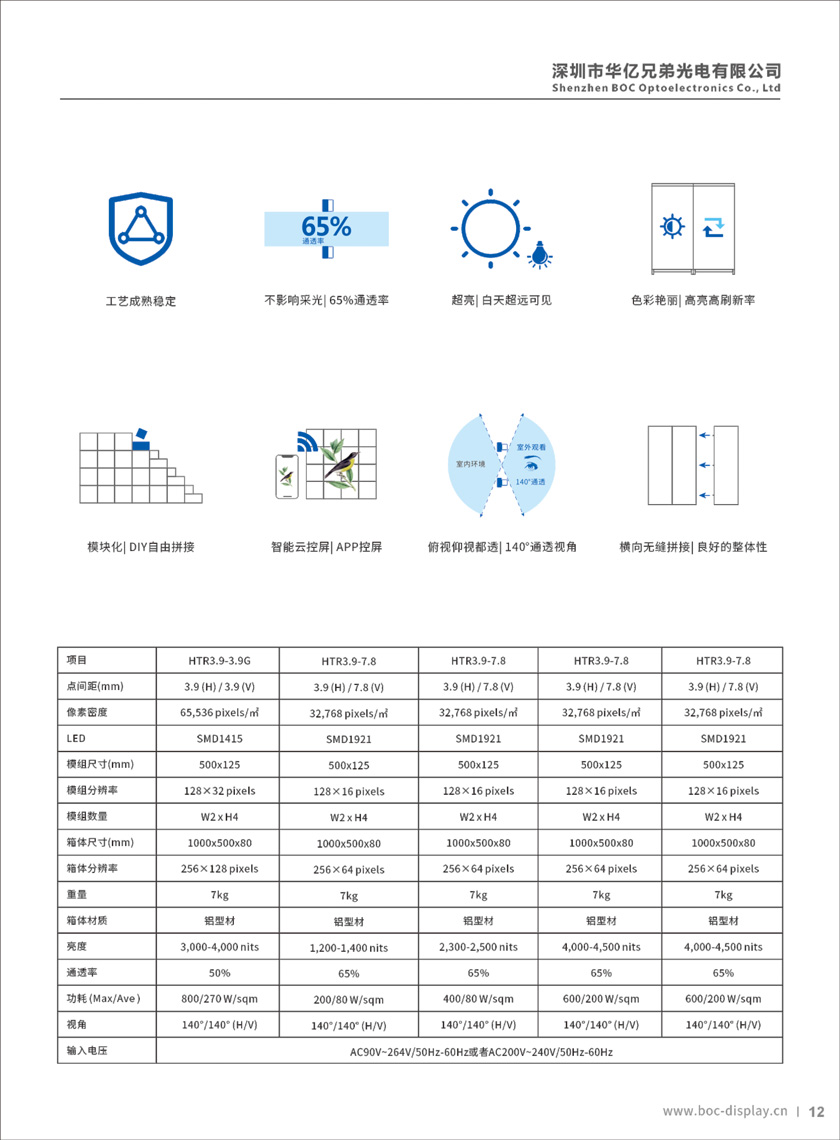

| 项目 | HTR3.9-3.9 | HTR3.9-7.8 |
| 点间距 | 3.9mm (H) / 3.9mm (V) | 3.9mm (H) / 7.8mm (V) |
| 像素密度 | 65,536 pixels/㎡ | 32,768 pixels/㎡ |
| LED | SMD1415 | SMD1921 |
| 模组尺寸 | 500x125mm | 500x125mm |
| 模组分辨率 | 128×32 pixels | 128×16 pixels |
| 模组数量 | W2 x H4 | W2 x H4 |
| 箱体尺寸 | 1000x500x80mm | 1000x500x80mm |
| 箱体分辨率 | 256×128 pixels | 256×64 pixels |
| 重量 | 7kg | 7kg |
| 箱体材质 | 铝型材 | 铝型材 |
| 亮度 | 3,000-4,000 nits | 3,500-4,500 nits |
| 通透率 | 50% | 65% |
| 功耗 (Max/Ave ) | 800/270 W/sqm | 800/270 W/sqm |
| 视角 | 140°/140° (H/V) | 140°/140° (H/V) |
| 输入电压 | 100-240V ± 10% | 100-240V ± 10% |
